ZRAYE-NTBS temperature tag with an independent temperature sensor Printed batteries include
ZRAYE-NTBS temperature tag with an independent temperature sensor Printed batteries include
Product Name:
BLE Sticker
Specification:
Model:
ZRAYE-NTBS temperature tag with an independent temperature sensor Printed batteries include
Detailed Parameters
技术参数/Performance | |||
电池容量 Battery Capacity | At least 50mAh | 电池电压 Voltage | 3V |
工作频段 Frequency range | 2.400~2.480GHZ | 支持协议 Support Agreement | BLE4.0 |
续航时间*** Duration | 1 年 1Year | 覆盖范围** Broadcasting Range | 直径最大 100m (空旷) Up to 100m( open area) |
数据安全 Security | 可加密防篡改 Encryption | 温度传感器精度 Temperature accuracy | +/-0.5℃ |
开关功能 Switch Function | NFC 开启 NFC Turn-on | 有效储存时间 Shelf Lifetime | 2 年 2 years |
物理特性/Physics | |||
厚度 Thickness | <1.5mm | 表面尺寸 Outer Dimension | 70mm*60mm |
颜色 Color | 白色 White | 封装 Casing |
PET with adhesive |
其他/Others | |||
环境 Environment | IP65 | 工作温度 Operating Temp | -10℃ ~ 50℃ |
Remark:
Duration is related to broadcast interval, power and working condition. The default value is 5mins@-5dBm room temperature.
Broadcasting range is related to the working environment, such as whether there are any obstructions in the space and whether there are any metal shields, etc

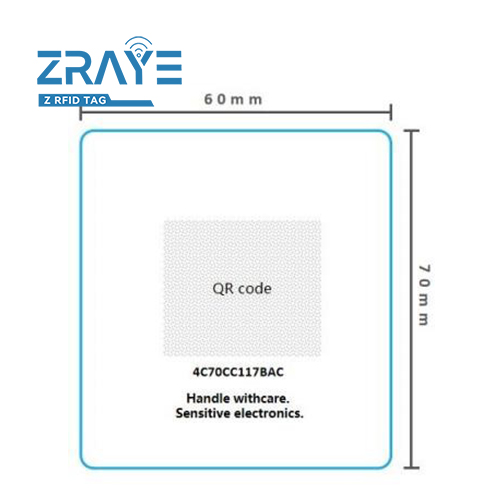

Product Size

Remark:
The tolerance for above dimension is ±0.5mm.
Precautions
1.During transportation, conditions such as severe vibration, squeezing, high temperature and humidity should be avoided;
2.The tag recommended storage conditions: Sealed and stored at room temperature;
3.The tag can be bent, the general bending radius is 50mm, the tag cannot be 180 degrees folded;
4.After use, the labels may show signs of damage. Please dispose of them according to the local garbage classification regulations (discard them in non-recyclable areas).
